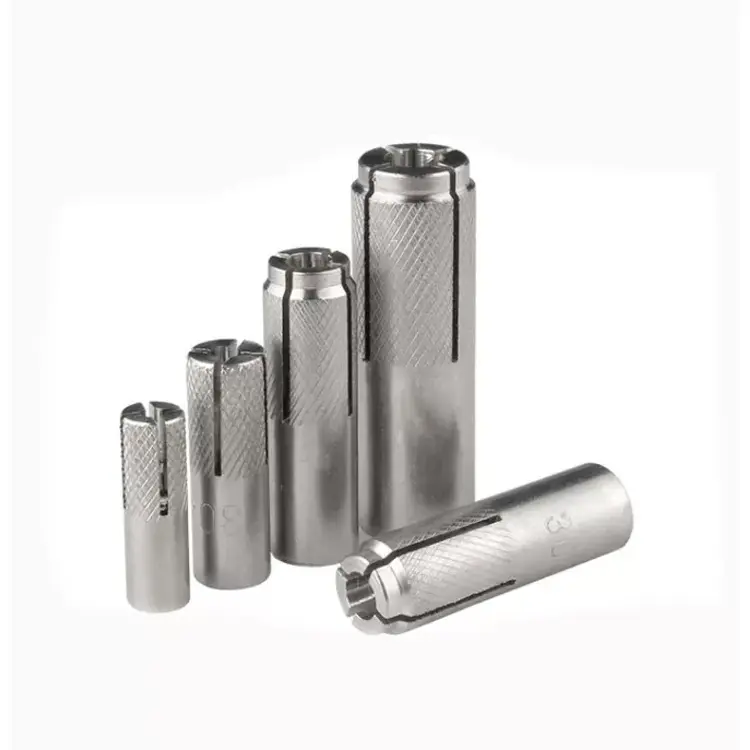

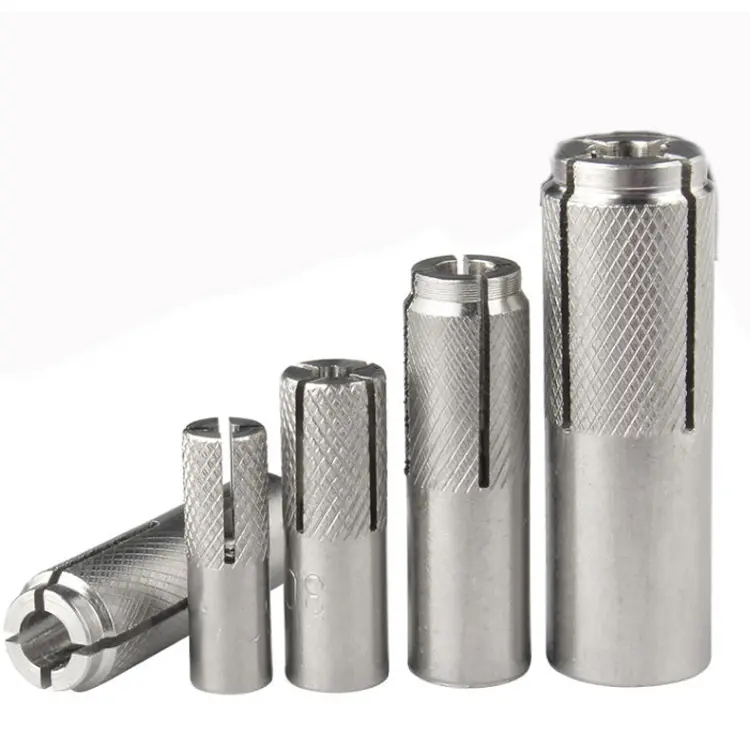

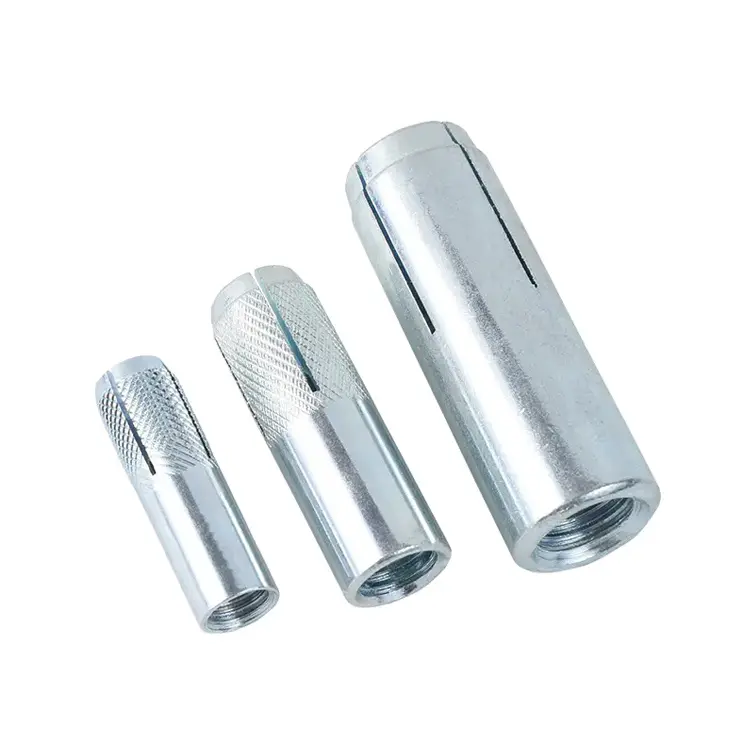

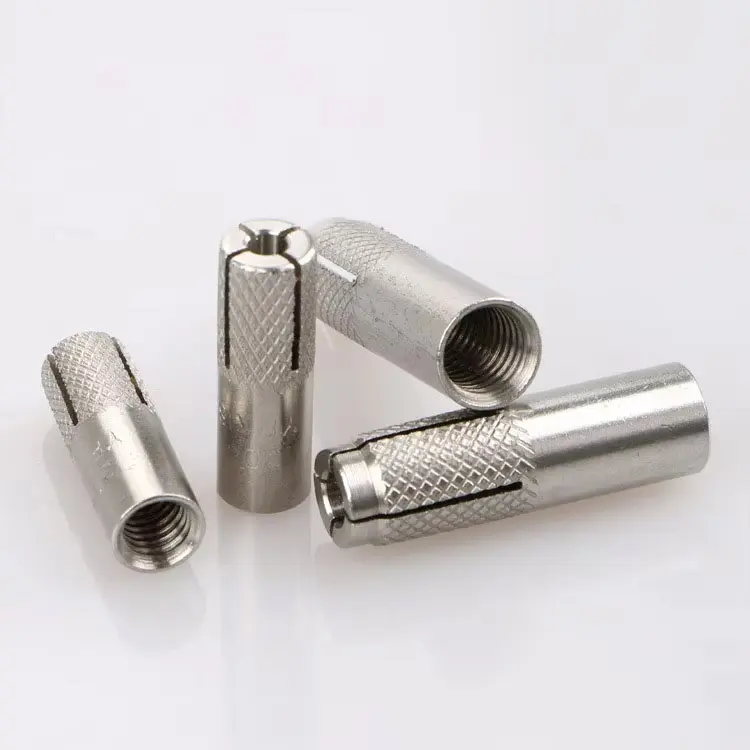

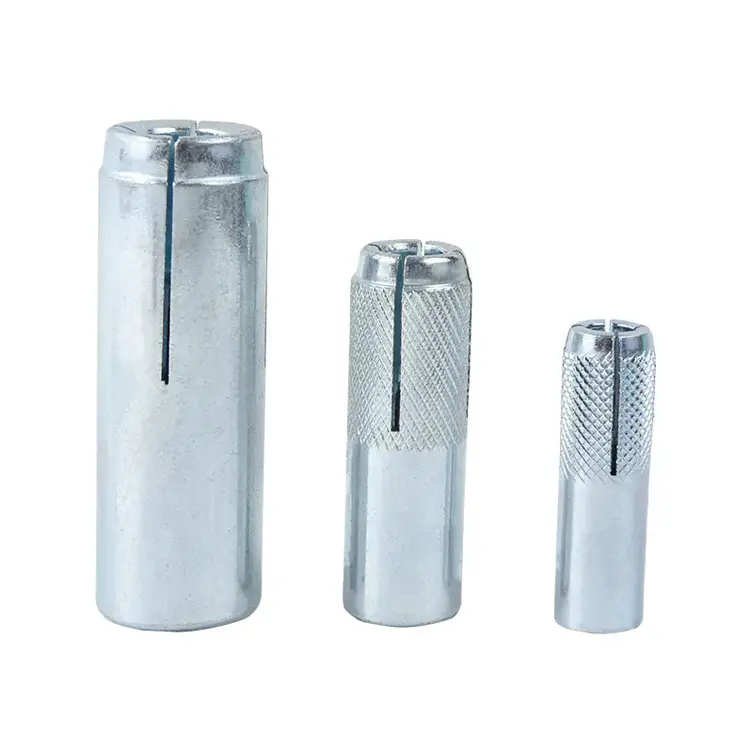

Drop-In Anchors | Flush-Mount Anchoring for Solid Concrete
Anchors
Drop-In Anchors (1).jpg
Drop-In Anchors (2).jpg
Drop-In Anchors (3).jpg
Drop-In Anchors (4).jpg

Drop-In Anchors | Flush-Mount Anchoring for Solid Concrete

Hebei Chudu Metal Products Co., Ltd. supplies reliable Drop-In Anchors, designed for flush-mount anchoring in solid concrete. These internally threaded anchors are ideal for overhead applications or when a clean, level surface is required after installation. Expansion is achieved with a setting tool that drives the internal wedge into the anchor body.

  • Product Name Drop-In Anchors | Flush-Mount Anchoring for Solid Concrete
  • Standard DIN / ANSI / ISO / GB / Customized
  • Thread Size M6 – M20 (or 1/4" – 3/4")
  • Length 25 mm – 80 mm or customized
  • Installation Requires a setting tool to expand the anchor body
  • Usage Anchoring into solid concrete (not suitable for hollow block or brick)
Contact us
Product Information
Drop-In Anchors (5)
Drop-In Anchors (4)

Product Overview


Product Name Drop-In Anchor / Flush Anchor / Internally Threaded Anchor
Standard DIN / ANSI / ISO / GB / Customized
Thread Size M6 – M20 (or 1/4" – 3/4")
Length 25 mm – 80 mm or customized
Installation Requires a setting tool to expand the anchor body
Usage Anchoring into solid concrete (not suitable for hollow block or brick)
Material Options Carbon Steel ·Stainless Steel (SS304, SS316)
Surface Finish Zinc Plated (White / Yellow)

Product Features

  • 3-4icon_ (10)
    Flush finish – perfect for applications requiring surface clearance
  • 3-4icon_ (9)
    Internally threaded – allows bolt removal and reuse
  • Prevents wall cracking or material splitting
    Strong holding power in solid concrete
  • Corrosion-resistant coatings for long-term use’
    Ideal for overhead installations or suspended fixtures
  • Available in universal, frame-type, and split-type designs
    Easy to install with drill, hammer, and setting tool
Drop-In Anchors (5)

Typical Applications

  • Fixing door and window frames

    Electrical and mechanical installations

  • Installing handrails and guardrails

    HVAC systems and pipe hanging

  • Automotive (2)

    Handrails and safety barriers

  • hvac

    Cable trays and brackets

  • Securing structural components to concrete or brick walls

    Equipment mounting on ceilings or walls

Installation Steps

1.   Drill a hole to the correct diameter and depth.

2.  Clean the hole thoroughly.

3.  Insert the anchor flush with the concrete surface.

4.  Use a drop-in setting tool to expand the anchor.

5.  Insert bolt or threaded rod and tighten.

Packaging & Delivery

•   Packaging:

o   Small boxes + outer carton, or bulk in bags

o   Custom labels or kits with bolts available

•   MOQ: 5,000 pcs (negotiable based on size)

•   Lead Time: 10–20 days

•   Port of Shipment: Tianjin, China

Why Choose Chudu Fastener

•   Factory-direct prices and strict QC inspection

•   Over 10 years of anchor bolt production experience

•   Full size availability and customization

•   High-quality materials with anti-corrosion coatings

•   Fast global delivery with multilingual support
